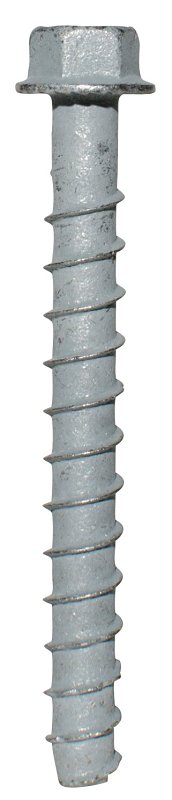

Simpson Strong-Tie Titen HD THD37400HF1 Heavy-Duty Screw Anchor, 3/8 in Dia, 4 in L, Carbon Steel, Zinc

Simpson Strong-Tie

$2.99~~$2.99~~

Color: Gray
Diameter: 3/8 in
Drill Size: 3/8 in
Drive Type: Hex
Finish: Zinc
Model #: THD37400HF1
UPC #: 707392678724
SKU: 7970288

Your shopping list will be used for pickup in-store

Product Details

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post-bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated. The stainless steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present.

Key Features

Qualified for static and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
Designed to install using standard-sized ANSI tolerance drill bits
Hex washer head requires no separate washer and provides a clean installed appearance
Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
Zinc-plated carbon steel anchor can be used for temporary exterior applications

Item Specifications

Color	Gray
Diameter	3/8 in
Drill Size	3/8 in
Drive Type	Hex
Finish	Zinc
Fixture Thickness	1/2 to 9/16 in
Head Type	Hex

Length	4
Material	Carbon Steel
Minimum Clearance	1/2 in
Minimum Concrete Thickness	4 to 5 in
Minimum Embedment Depth	2-1/2 to 3-1/4 in
Shear Strength	4460 lb
Tensile Strength	10890 lb
