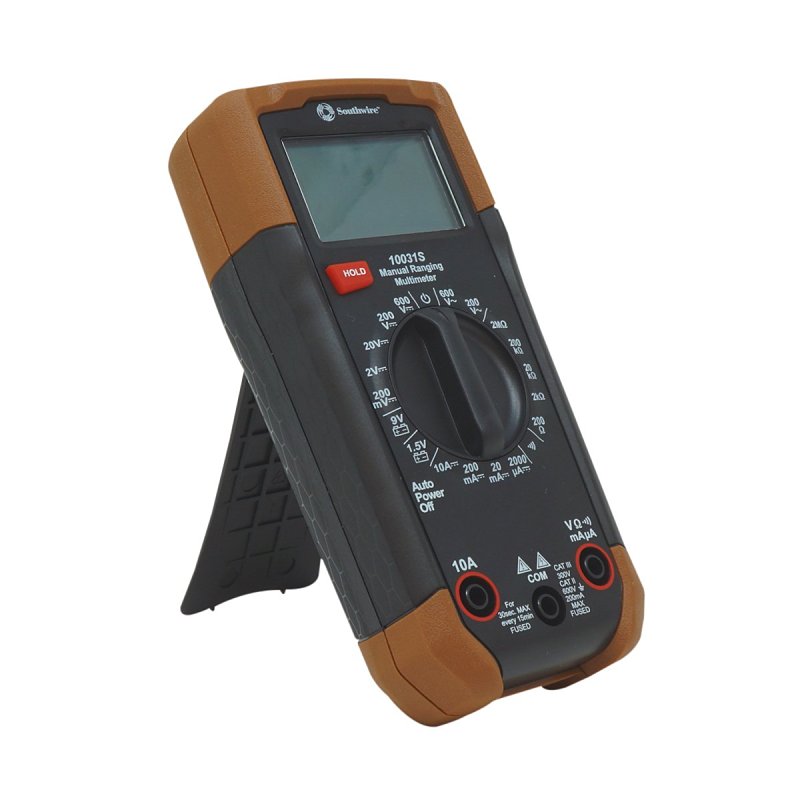

Southwire 10031S Manual Ranging Multi-Meter, LCD Display

Southwire

Southwire 10031S Manual Ranging Multi-Meter, LCD Display

$37.99$37.99
Southwire 10031S Manual Ranging Multi-Meter, LCD Display
  • Bandwidth Range: 45 to 400 Hz
  • Dimensions: 6.1 in H x 2.9 in W x 2.1 in D
  • Display Type: LCD
  • Measuring Functions: AC Voltage Battery Test Continuity DC Current DC Voltage Resistance
  • Measuring Range: 200 mVDC 2000 VDC 20 VDC 600 VDC 200 mVAC 600 VAC 200 uA 20 mA 10 A 200 Ohm 20 kOhm 200 kOhm 2000 kOhm 2000 MOhm
  • Model #: 10031S
  • UPC #: 032886699764
  • SKU: 4301032

Your shopping list will be used for pickup in-store

Product Details

This Southwire general-purpose multi-meter is ideal for basic electrical repairs and troubleshooting. Features include a rugged double molded housing, large LCD display and battery test function. Meets the latest UL safety standards.

Key Features

  • Seven functions AC and DC voltage, DC current, resistance, continuity, 15 and 9 V battery test
  • Southwire's meters are designed to withstand the rugged environment of a worksite and have been drop tested up to two meters
  • The compatible magnetic hanging strap and the built-in kick stand free up your hands allowing you to work safely and efficiently

Item Specifications

Bandwidth Range45 to 400 Hz
Dimensions6.1 in H x 2.9 in W x 2.1 in D
Display TypeLCD
Measuring FunctionsAC Voltage Battery Test Continuity DC Current DC Voltage Resistance
Measuring Range200 mVDC 2000 VDC 20 VDC 600 VDC 200 mVAC 600 VAC 200 uA 20 mA 10 A 200 Ohm 20 kOhm 200 kOhm 2000 kOhm 2000 MOhm
Power SourceBattery
Resolution0.1 mVDC 1 mVDC 10 mVDC 1 mVDC Voltage 0.1 VAC 1 VAC Voltage 1 uA 10 uA 0.1 mA 10 mA Current 0.1 1 10 100 Ohm Resistance
Temperature Rating32 to 122 deg F
TypeCAT III
MORE DETAILS:
  • Warranty: 5 Years
