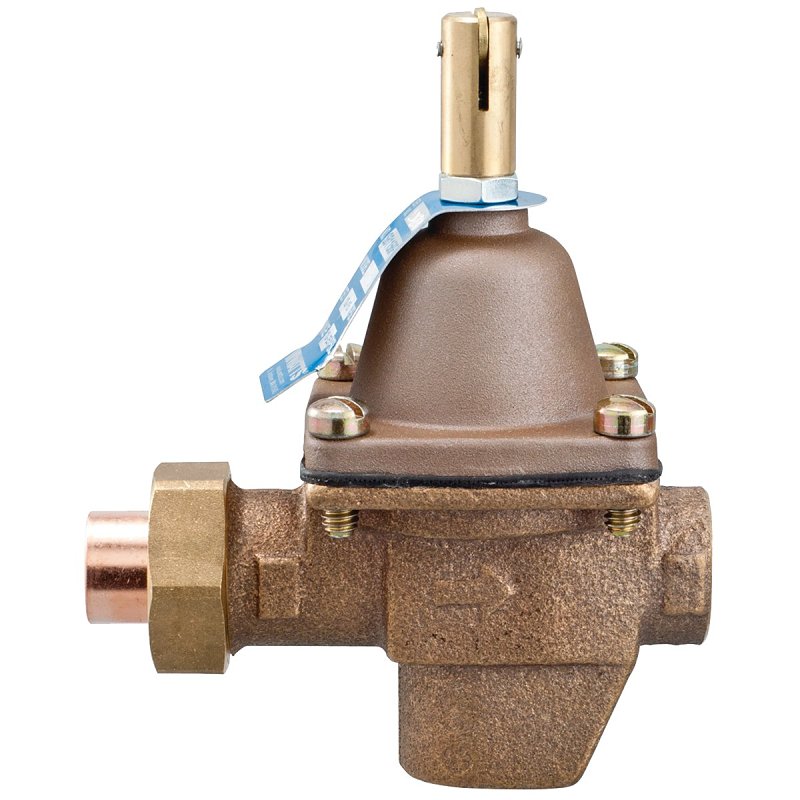

Watts 1156F SB1156F Water Feed Regulator, 1/2 in Connection, 10 to 25 psi Regulating, Bronze Body

Watts

Watts 1156F SB1156F Water Feed Regulator, 1/2 in Connection, 10 to 25 psi Regulating, Bronze Body

$119.99$119.99
Watts 1156F SB1156F Water Feed Regulator, 1/2 in Connection, 10 to 25 psi Regulating, Bronze Body
  • Body Material: Bronze
  • Connection Size: 1/2 in
  • Connection Type: 1/2 in Union Solder Inlet Connection x 1/2 in FIP connection
  • Dimensions: 4-3/8 in L x 5-3/8 in H
  • Media: Water
  • Model #: SB1156F
  • UPC #: 098268023077
  • SKU: 1850460

Your shopping list will be used for pickup in-store

Product Details

This 1/2 inch high capacity feed water pressure regulator is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times. It also provides make-up water to the system in the event of system leaks. It consists of a bronze body with union solder inlet and NPT threaded outlet connections, a tight seating check valve, purge lever for manual purging, and a stainless-steel strainer. It has high-capacity performance and a simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems. The maximum pressure is 100 psi (6.9 bar).

Key Features

  • Tight seating check valve
  • Purge lever for manual purging
  • Stainless steel strainer to protect the valve disc from fouling

Item Specifications

Body MaterialBronze
Connection Size1/2 in
Connection Type1/2 in Union Solder Inlet Connection x 1/2 in FIP connection
Dimensions4-3/8 in L x 5-3/8 in H
MediaWater
Regulating Pressure10 to 25 psi
Temperature Rating33 to 212 deg F
MORE DETAILS:
  • Application: For use in commercial or residential hydronic heating systems
